- SKU: 0099
- BARCODE:
- VENDOR: Mean Well

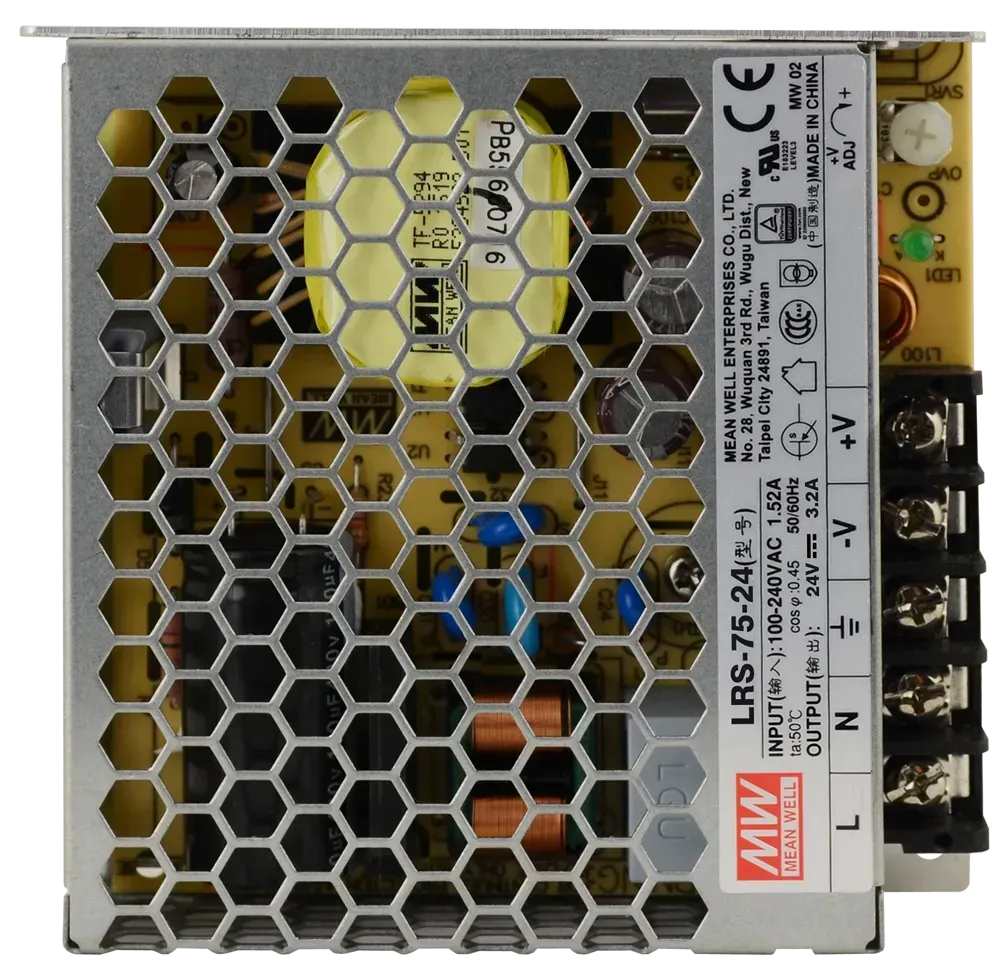

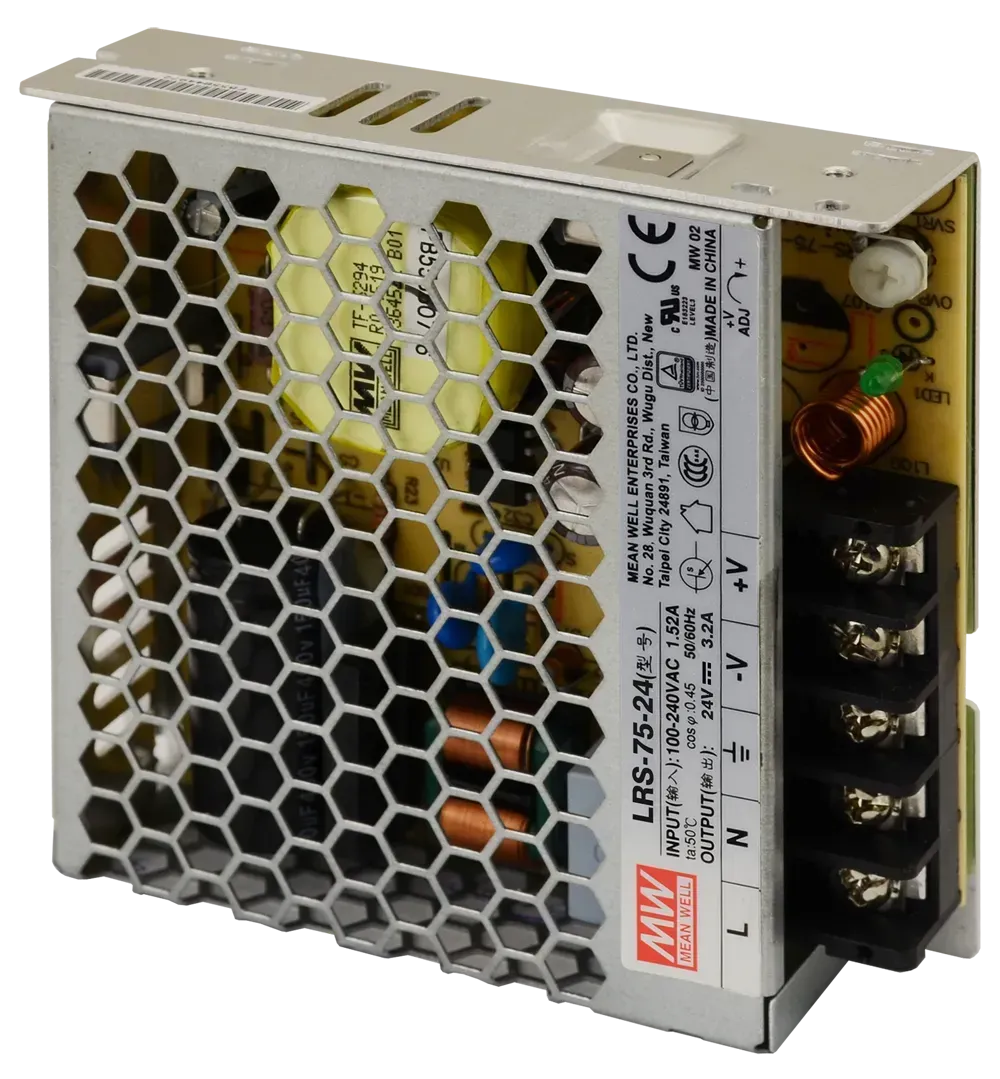

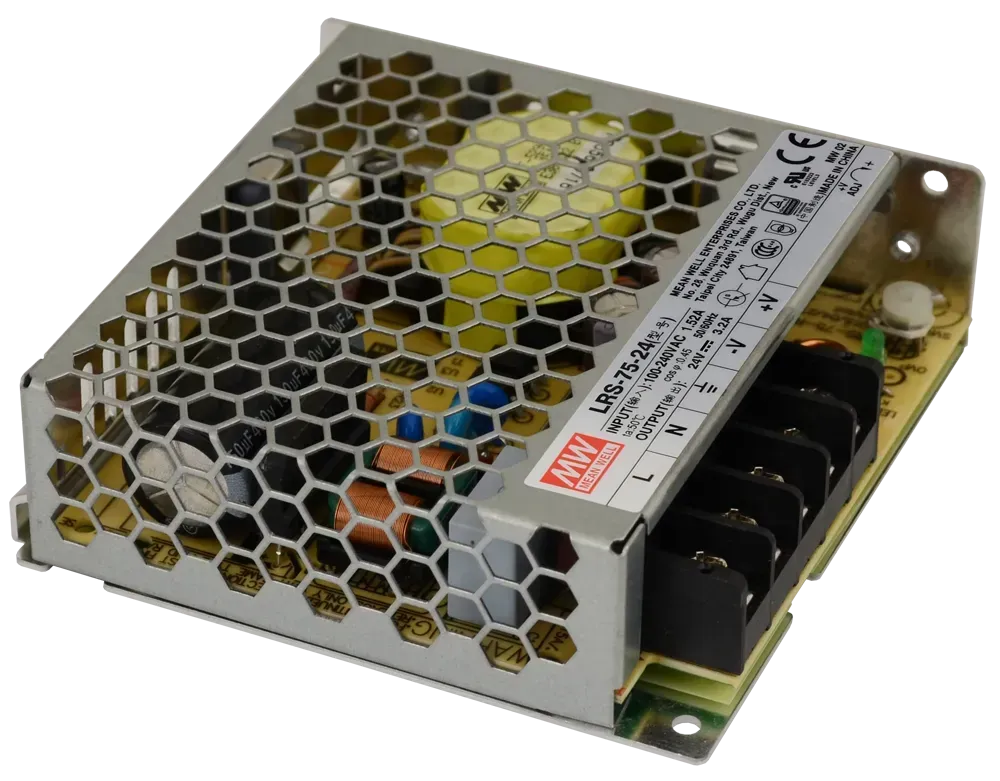

Power Supply Mean Well 76.8W DC24V IP20
85,00 zł
Taxes included.
Shipping calculated at checkout.
In stock!
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
Application:
- LED strips and modules 24V;
- LED boards 24V:
- LED strips 24V;
- LED lamps 24V;
- any devices and advertising structures with a 24V DC power supply.
Functions and properties:
- constant output voltage;
- housing design: in a casing, degree of protection: IP20;
- input voltage: 85 - 264 VAC;
- low consumption without load: <0.3W;
- protection: from short circuit, from overload, from overvoltage; from overheating;
- a large operating temperature range - from -30 to +70 degrees;
- fanless design, cooling using natural air convection;
- LED power indicator;
- high resistance to vibrations - up to 5G;
- tested at full 100% load;
- low cost, high reliability;
- Warranty - 3 years.
Features
| Output voltage | 24V |
|---|---|
| Input voltage | 85 ~ 264VAC |
| Output current | 0 ~ 3.2A |
| Body type | Metal |
| Mounting type | superficial |
| Protection , IP | IP20/IP33 (Leak) |
| Protection | Short circuit, Overload, Overvoltage, Overheat |
| Stabilization | CV - voltage |
| Cooling | passive |
| Working temperature | -30 ~ +70 C |
| Efficiency | 90% |
| Dimensions LxWxH | 99×97×30 |
| Length, mm | 99.0 |
| Width, mm | 97.0 |
| Height, mm | 30.0 |
| Weight, kg | 0.250 |
| Guarantee | 3 years |
